Playground Surfacing Guide: Depth, Materials and Fall Safety by Surface

The surface under playground equipment matters more than the equipment itself: falls to the surface cause most serious playground injuries, and the surface is what decides whether a fall ends in a bruise or a broken bone. The direct answer is to install a loose-fill surface — engineered wood fibre or playground mulch — at 9–12 in (23–30 cm) of depth, or a unitary surface such as poured rubber or rubber tiles, and to maintain the depth where children actually land, which is under swings and at slide exits, not the average depth across the whole area. Grass, dirt and concrete are not playground surfaces, however well maintained.

Depth, material and maintenance are one system: the right material at the wrong depth fails, and the right depth unmaintained fails within a season as material migrates away from fall zones. Before you order material, measure the area with our Mulch Calculator for loose-fill volumes and the Gravel Calculator if you are comparing aggregate options, and read our mulch mistakes guide for the depth and edging errors that ruin garden mulch — the same errors ruin playground surfacing faster, because children move the material constantly.

How fall safety is actually measured

Playground surfaces are rated by critical fall height: the maximum height a child can fall from and still have the surface absorb the impact below injury thresholds, measured by a standard drop test (ASTM F1292 in the US). A surface rated to 10 ft protects a fall from a 10 ft platform; a surface rated to 6 ft does not, however thick it looks. Always ask the supplier for the critical fall height at the installed depth, not the material's best-case rating — loose-fill ratings assume a maintained depth that real playgrounds rarely hold without topping up.

The other measurement is the use zone: the area around each piece of equipment that must be surfaced, extending 6 ft (1.8 m) in all directions from the equipment's edge, and further in the direction of travel — twice the swing height in front of and behind swings, and the slide's exit length plus 6 ft beyond a slide exit. Measure the use zone, not the equipment footprint, when you order material. A common and expensive error is surfacing the footprint and leaving the landing areas bare.

Loose-fill surfaces: wood fibre, mulch and sand

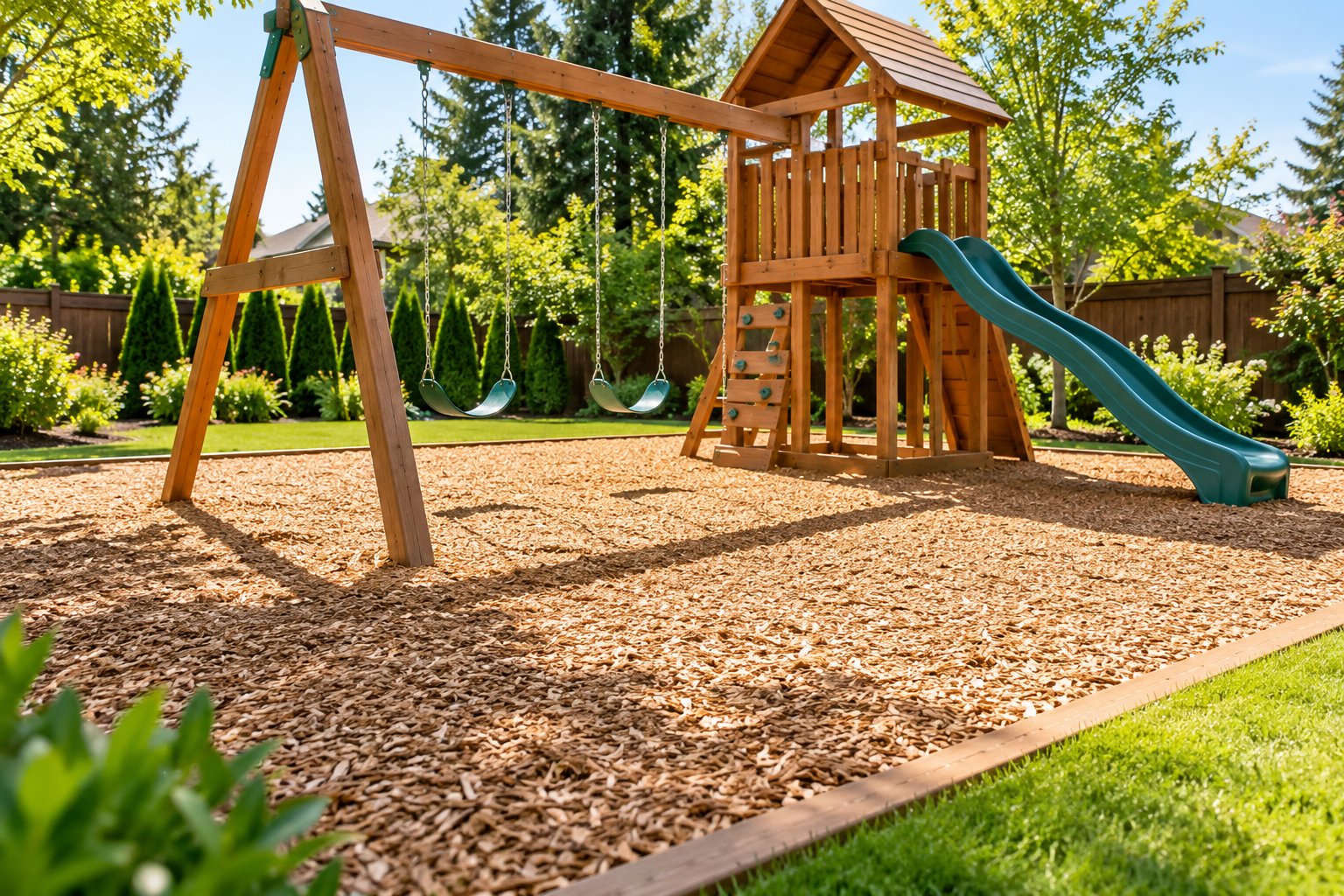

Engineered wood fibre (EWF) is the most common public-playground surface for good reasons: it is relatively cheap ($15–$30 per cubic yard installed in bulk), it drains, it is wheelchair-accessible when compacted and maintained, and at 9–12 in depth it rates to about 10 ft of fall height. Playground mulch — shredded bark, not garden bark nuggets — performs similarly but breaks down faster and needs topping up twice a year. Both migrate: swings kick material out from under the swing path, slides push it forward at the exit, and rain washes it downhill. Budget for topping up 25–30% of the original volume per year, and rake fall zones level monthly.

Sand is cheap and drains well, but it hides hazards (glass, animal waste), gets into clothing and shoes, and is not accessible for wheelchairs or strollers when loose. Pea gravel drains and does not decompose, but it is also not wheelchair-accessible, it migrates badly, and small stones end up in shoes, pockets and occasionally mouths. For a home playground, EWF is usually the best balance of safety, cost and maintenance; for a public playground, EWF or a unitary surface is the standard choice.

Unitary surfaces: poured rubber and tiles

Poured-in-place rubber (wet-pour) is a continuous rubber surface laid over a stone base, typically 2–4.5 in thick depending on the fall height required, and rubber tiles are interlocking mats of similar material. Both are wheelchair-accessible without maintenance, do not migrate, and rate to 10 ft or more at the right thickness. The cost is the barrier: $12–$20 per sq ft installed for poured rubber and $10–$16 for tiles, against $2–$4 per sq ft for loose-fill. For a 20 × 20 ft home play area (400 sq ft), that is $4,800–$8,000 for poured rubber versus $800–$1,600 for EWF.

Unitary surfaces still need maintenance: seams on tiles lift and become trip hazards, poured rubber cracks at the edges if the base settles, and both get hot in direct sun — surface temperatures over 140°F (60°C) have been measured on dark rubber in summer, which burns bare feet. Choose lighter colours in hot climates, and inspect seams and edges twice a year. For schools and public playgrounds, the accessibility and low maintenance usually justify the cost; for a home playground, EWF with disciplined topping up is usually the better value.

Depth: the number that actually protects children

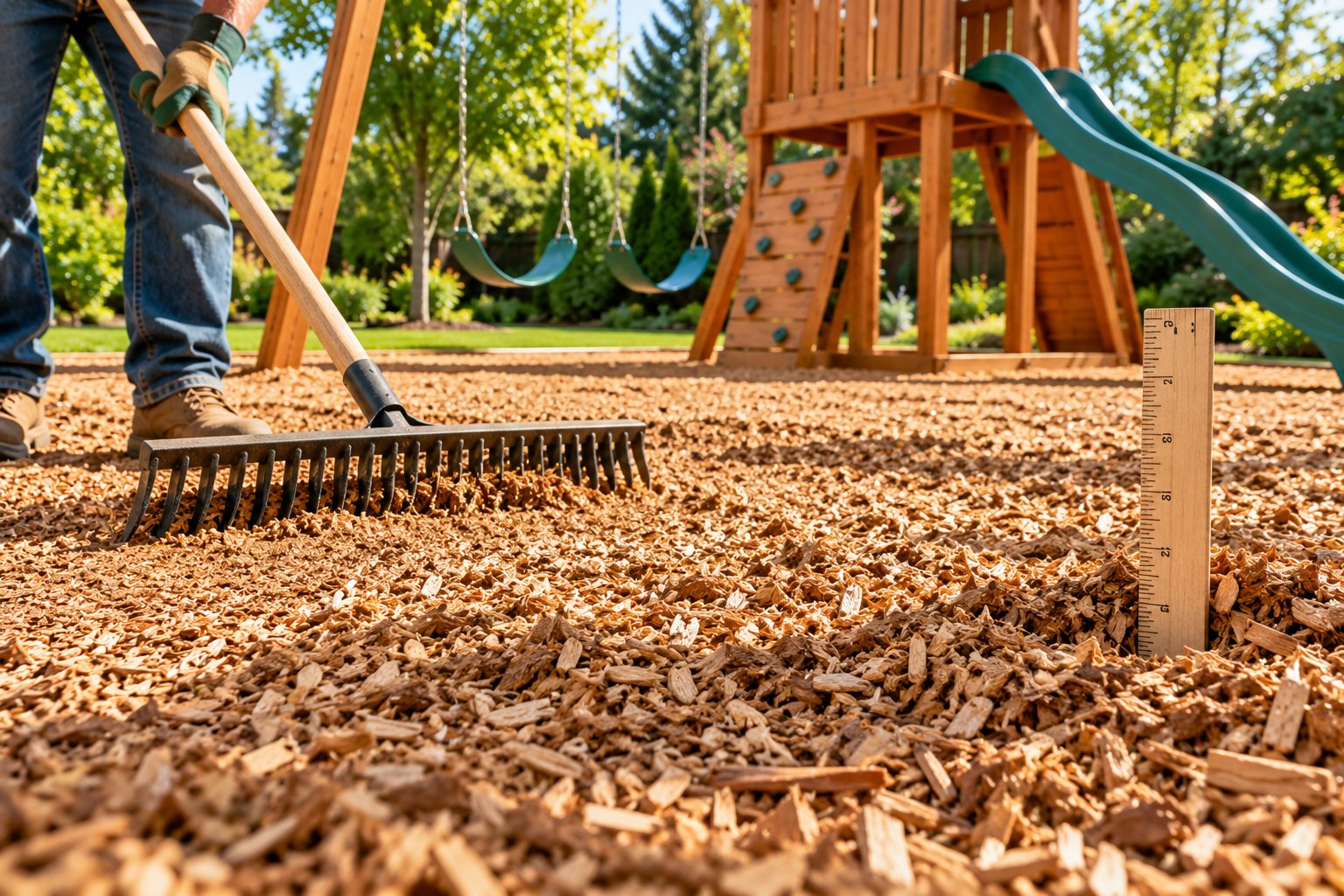

For loose-fill, install 12 in of material to achieve 9 in of settled depth — loose-fill compacts about 25% — and then maintain 9 in as the minimum, not the average. Check depth with a simple probe: push a ruler or a marked stick into the surface at the swing path, the slide exit and under climbing equipment, monthly in the play season. Where the depth falls below 9 in, top up that spot, not the whole area. A playground that was 12 in deep at installation and is 4 in deep under the swings is a 4 in playground, whatever the invoice said.

Do not use landscape fabric under loose-fill playground surfacing the way garden guides recommend for mulch beds. Fabric under a play surface traps water, prevents the material from knitting together, and eventually works its way to the surface in tatters. Use a geotextile only for drainage separation on wet sites, and edge the area with a border — timber, rubber or concrete curbing — that keeps material in and gives a mowing edge outside. The border must be flush or ramped, not a raised trip edge inside the use zone.

What not to use, and why

Grass is not a playground surface. Worn grass over compacted soil rates to about 3 ft of fall height at best, and the areas under swings and slides wear to bare dirt within weeks. Bare dirt and concrete rate to essentially zero — concrete is the surface that produces the worst playground injuries and should never sit inside a use zone. Asphalt is nearly as bad. Carpet, artificial turf without a shock pad, and thin rubber mats laid on concrete do not meet fall-height standards either, however soft they feel underfoot; the drop test, not the hand test, is the measure.

Also avoid treated wood mulch containing chromated copper arsenate (CCA) — an older preservative now restricted — and recycled rubber loose-fill (shredded tyres) for young children, where ingestion and skin-contact concerns persist even though the fall performance is good. If you buy EWF, specify engineered wood fibre certified to playground standards, not generic landscape mulch, which varies in particle size and decomposition rate.

Cost comparison for a 20 × 20 ft play area

For 400 sq ft at 12 in installed depth, loose-fill needs about 15 cubic yards: EWF at $15–$30 per yard is $225–$450 in material plus delivery and edging, or roughly $800–$1,600 installed with a border. Sand is cheaper in material but needs containment and more frequent replacement. Poured rubber at $12–$20 per sq ft is $4,800–$8,000 installed. Tiles at $10–$16 per sq ft are $4,000–$6,400 plus base preparation. Over ten years, EWF with annual topping up (about $200–$400 per year) totals roughly $3,000–$5,500 — still below poured rubber's upfront cost, but the gap narrows, and the maintenance burden is the real difference.

The maintenance schedule that keeps the rating

Monthly in the play season: rake fall zones level, probe depth under swings and at slide exits, remove debris and foreign objects, check borders and edging. Twice a year: top up loose-fill to 12 in installed depth, inspect unitary seams and edges, check drainage after heavy rain. Annually: verify the critical fall height against the equipment's highest platform — if you add taller equipment, the surface rating must rise with it — and replace any unitary section that has cracked, lifted or thinned. A surface that is not maintained is not a safety surface; it is landscaping with a safety claim.
