Home Gym Setup: Space, Flooring, Equipment and Ventilation for a Room That Gets Used

Set up a home gym in at least 10 × 10 ft (100 sq ft, 9.3 sq m) for a basic strength and cardio setup, 12 × 12 ft (144 sq ft) if you want a rack and a cardio machine together, and put 3/4 in (19 mm) rubber flooring over the whole training area before buying a single piece of equipment. Budget $500 to $1,500 for a starter setup — adjustable dumbbells, a bench, resistance bands and a mat — or $2,000 to $5,000 for a rack, barbell, plates and a cardio machine, and measure the room and the ceiling first with the Square Footage Calculator. Ceiling height decides more than floor area: you need at least 8 ft (2.4 m) for overhead pressing and 9 ft (2.7 m) for a tall rack with pull-ups. Our home office setup guide covers the same ergonomics of desk, chair and monitor that matter when the gym shares a room with a desk, and our garage organisation guide shows how to zone a garage gym so the car, the tools and the training area stop competing.

Space first: floor area, ceiling height, and layout

Floor area is the least useful number on its own, because a gym is a set of zones with clearances, not a rectangle of equipment. A power rack needs a footprint of about 4 × 6 ft plus 2 ft of working space on each side and 3 ft in front for loading plates and stepping back. A treadmill needs roughly 3 × 6 ft plus 2 ft behind it for safe dismount and 1 ft on each side. A dumbbell training area needs a clear 6 × 8 ft of open floor for lunges, floor work and stretching. Add those zones without overlap and a realistic minimum emerges: 100 sq ft for dumbbells, bench and mat only; 150 to 200 sq ft for a rack plus cardio; 250 sq ft or more for a full multi-user setup. Measure the room, sketch the zones to scale on paper, and leave the walking paths clear — equipment pushed against a wall you cannot reach behind becomes equipment you stop using.

Ceiling height is the hard constraint. Overhead pressing with a barbell needs the bar plus your height plus clearance — for a 6 ft person, that is roughly 8 ft of ceiling. A power rack with a pull-up bar needs 7 to 7.5 ft of rack plus head clearance above the bar, so 8.5 to 9 ft is comfortable and 8 ft is the workable minimum with a short rack. Basements with 7 ft ceilings rule out overhead work and tall racks but still suit dumbbells, benches, rowers and floor work. Doorways matter too: a treadmill or rack that cannot get into the room is a return, so measure the narrowest door, hallway and stair turn against the largest boxed dimension, exactly as our sofa and furniture guides advise for any large purchase.

Flooring that protects the floor and your joints

Rubber flooring is not optional for a home gym. Interlocking rubber tiles or rolled rubber at 3/8 in thickness suit light dumbbell and bodyweight work, while 3/4 in tiles or mats are the standard under racks and plate-loaded equipment, because they absorb dropped plates and protect concrete and subfloors from cracking. Horse-stall mats, at 4 × 6 ft and 3/4 in thick for $40 to $60 each, are the budget standard and cover a 10 × 10 ft area for $250 to $400. Cover the full training area, not just under the rack, because plates get carried, dumbbells get set down, and a mat edge in the middle of a lunge path is a trip hazard. If the gym is on an upper floor, add a second layer or a plywood platform under the rack to spread point loads, and check the floor joist capacity for a loaded rack — a rack, barbell and 500 lb of plates concentrate over 1,000 lb on about 24 sq ft.

Flooring choice also affects cleaning and smell. Rubber mats off-gas for a few days when new, so air the room out before training, and choose low-VOC mats if the gym shares space with living areas. Foam puzzle mats are cheaper and softer but compress under heavy racks, dent permanently under plates, and slide on smooth floors — they suit yoga and stretching zones, not strength zones. Carpet under a gym traps sweat and dust and makes equipment unstable; if the room is carpeted, lay plywood over the carpet under the rack and mats over the whole area. Whatever you choose, the test is simple: jump and land on it, drop a 10 lb plate from waist height, and check that nothing moves, dents, or echoes through the house.

Equipment: buy in the order you will actually use it

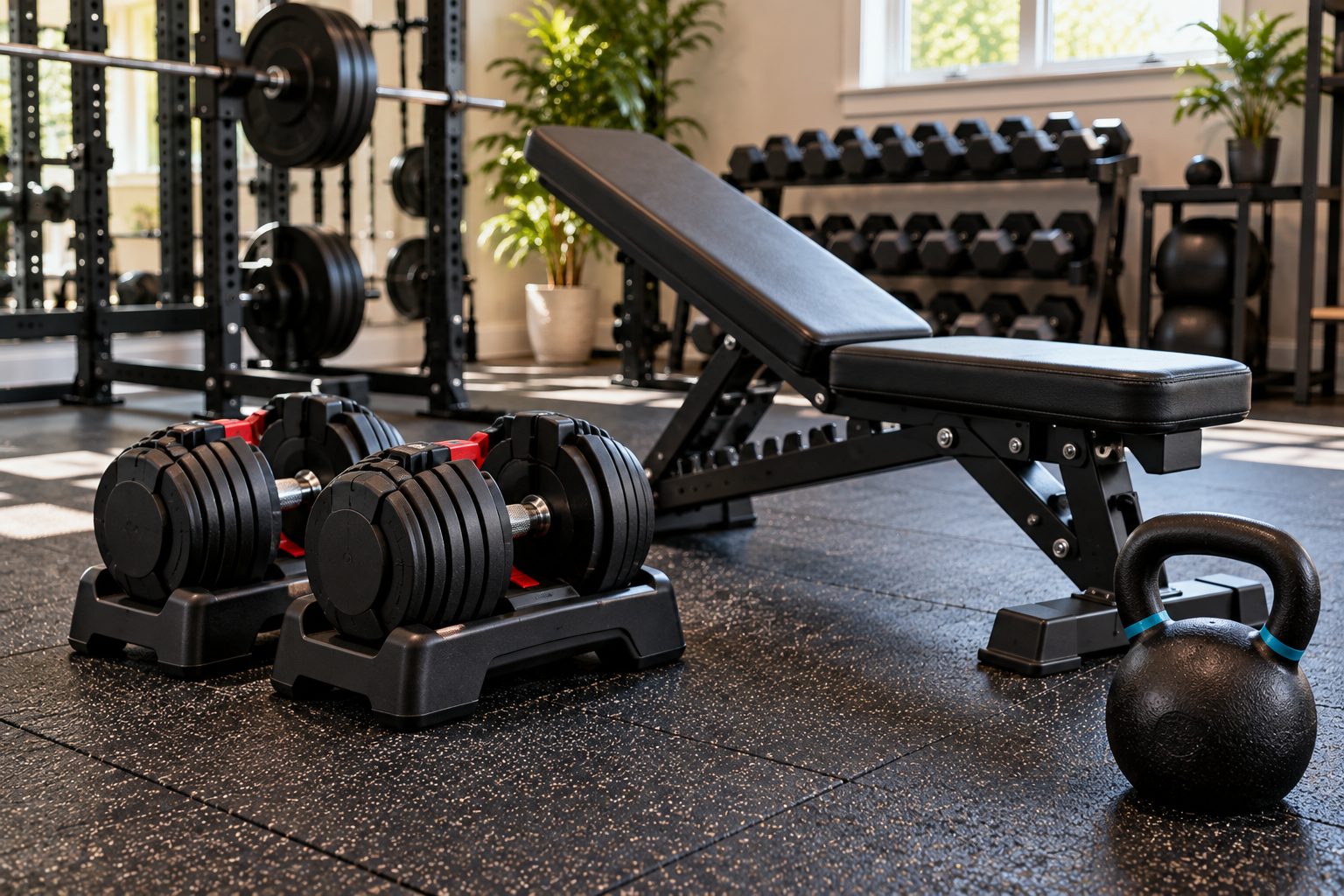

Buy equipment in the order of use, not the order of excitement. First, adjustable dumbbells (5 to 52.5 lb per hand, $300 to $400 for a good pair) and a sturdy adjustable bench ($150 to $300), which together cover most strength training in 20 sq ft. Second, resistance bands and a pull-up bar ($50 to $100 total) for assistance work and back training. Third, a power rack with safety bars ($400 to $900) and a barbell with plates ($300 to $700) when you want heavy squats and bench pressing with safety. Fourth, a cardio machine — a rower ($500 to $900) gives the most training per square foot and per dollar, while a treadmill ($800 to $2,000) needs more space, more maintenance, and a dedicated circuit. A fan, a mirror, and a timer cost under $200 combined and change how the room feels more than any single machine.

Check the electrical and structural details before the big purchases. A treadmill and a fan on the same circuit as a space heater will trip breakers, so put the treadmill on its own 15-amp circuit where possible. Bolt a rack to the floor or to a platform on concrete, and to a plywood platform on wood floors, because an unanchored rack walks under heavy use. Keep a fire extinguisher and a first-aid kit in the room, and keep children and pets out of the rack zone during training — a loaded barbell is not a playground. Finally, budget for maintenance: treadmill belts need lubrication every 3 months or 150 miles, cables and pulleys need inspection every 6 months, and rubber flooring needs a weekly damp mop to stop dust building up in the seams.

Ventilation, lighting, and the room you want to enter

Ventilation decides whether the gym gets used in summer. Training raises room temperature fast — a hard session in a sealed 150 sq ft room can push it 10°F above the rest of the house — so plan for an exhaust fan, an openable window, or a mini-split unit if the room is a garage or basement without HVAC. A ceiling fan or a large floor fan moving air across the training area matters more than air conditioning alone, because moving air is what keeps a workout bearable. In a garage gym, insulate the door and seal gaps before adding heating or cooling, or you are conditioning the outdoors; a garage door insulation kit costs $100 to $200 and cuts temperature swings noticeably.

Lighting and layout finish the room. Bright, even light at 5,000 to 6,500 K colour temperature suits training better than warm living-room light, and a mirror on the main training wall — at least 4 × 6 ft, mounted with a 1 in gap from the floor — lets you check form, which is the main safety benefit of a mirror, not vanity. Keep the room at 60 to 70°F for training, store plates on a rack or tree rather than on the floor, and put a small shelf by the door for water, a towel, and a phone, so nothing needed mid-workout lives in another room. The gym that gets used is the one you can walk into, start training in 2 minutes, and leave tidy in 2 minutes — every extra step of setup is a reason to skip the session.

Garage gyms, spare rooms, and shared spaces

A garage gym is the most popular home gym for a reason: concrete floors, high ceilings, and space for a rack without sacrificing a bedroom. Zone it like our garage guide advises — parking, tools, and training as separate areas with the training zone marked by flooring, not by hope — and protect the car from chalk dust and plate dings with a clear boundary. Insulate and ventilate as above, and plan for dust: garage gyms accumulate it, so wipe equipment weekly and keep electronics covered. A spare bedroom gym suits dumbbells, bands, and a rower better than a rack, because of floor loading and ceiling height, and a shared gym-office needs the desk zone and the training zone separated by at least the flooring boundary, with the desk chair clear of the bar path. In every case, the rule is the same: the room must be ready to train in without moving furniture first.
